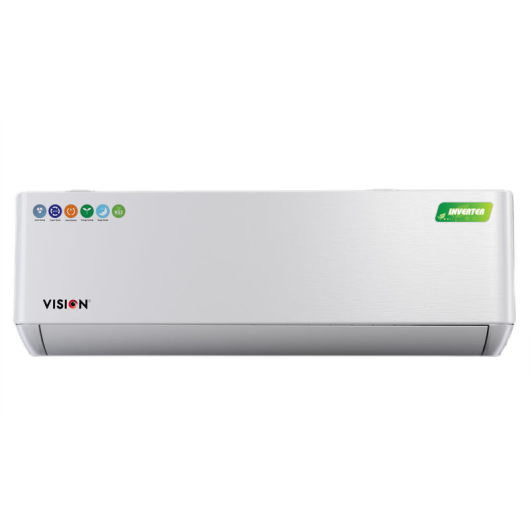

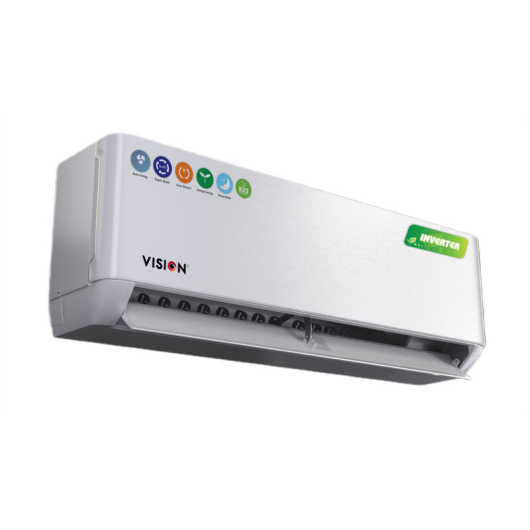

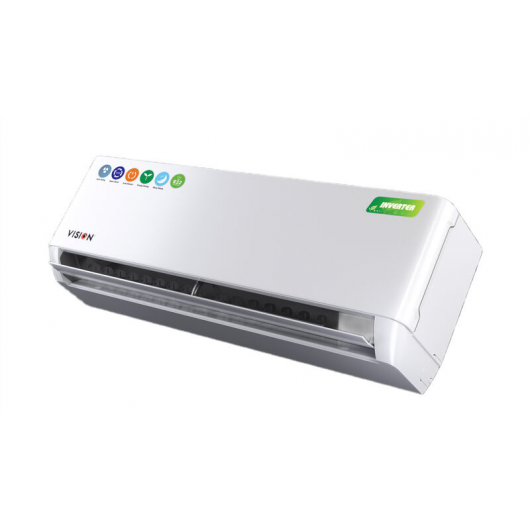

Vision AC 1.5 Ton-BSCI(3D Ultra)
Please sign in so that we can notify you about a reply
| Specification in details | ||
| Basic Specifications | Model Name | Vision AC 1.5 Ton-BSCI(3D Ultra) |
| Item Code | 988666 | |
| MRP | 72,400 | |
| AC Type | Split | |
| Function | Cooling Inverter | |
| Capacity (Ton) | 1.5 Ton | |
| Capacity (Btu/h) | 18259 BTU/hr | |
| Cooling capacity (Watt) | 5350W | |
| Rated power input (watt) | 1480W (350~1800W) | |
| EER(W/W) | 3.614 W/W | |
| Voltage range | 145 V~270V | |
| Rated Current (A) | 6.4A (1.8~8.5A) | |
| Frequency (Hz) | 50Hz & 60Hz | |
| Rated Airflow(M³/h) | 850 M³/h | |
| Indoor Noise level(dB) | 46 dB | |
| Outdoor Noise Lebel (dB) | 55 dB | |
| Cooling Specifications | Refrigerant | R32a |
| Refrigerant amount (Kg) | 0.820 Kg | |
| Condenser Coil (material) | Copper (IGT) | |
| Fin type | Golden Fin | |
| Evaporator Coil (material) | Copper (IGT) | |
| Fin type | Golden Fin | |
| Compressor Type | Rotary, Inverter | |
| Operating Information | Temperature Control Range | 16°C-31°C |
| Operation mode | Three type ( Turbo, ECO & Regular) | |
| Turbo mode | Yes (Fast cooling within 20 minute control room condition) | |
| Regular mode | Yes (Fast cooling within 35 minute control room condition) | |
| ECO mode | Yes (Cost saving mode) | |
| Indoor fan speed | Mute, Low, Medium , High & Turbo | |
| Display Type | LED Hidden Display | |
| 3D (Yes/No) | Yes | |
| Swing Louver | Auto horizontal & Vartical swing | |
| Anti-bacteria Filter (Yes/No) | Yes | |
| Dust Filter (Yes/No) | Yes | |
| Sleep Mode Timer (Yes/No) | Yes | |
| Self/frost Cleaning | Yes | |
| I feel mode | Yes | |
| Packing Information | Indoor size (Dimensions-W*D*H) mm | 920×306×195 |
| Outdoor size (Dimensions-W*D*H) mm | 853×349×602 | |
| Indoor Unit Packing dimensions (W*D*H) mm | 990×382×266 | |
| Outdoor Unit Packing dimensions (W*D*H) mm | 890×385×628 | |
| Indoor net Weight (kg) | 10.5Kg | |
| Outdoor net weight (kg) | 27.5 Kg | |
| Warranty information | Compressor | 10 years for residential |
| Spare parts | 2 Years | |
| Service | 2 Years | |
| Cleaning | 1 Year | |
| Free accessories | Copper pipe (Suction & discharge) | 12 ft |
| Insulation | 12 ft | |
| Connecting wire | 24 ft | |
| Remote | 1 Pcs | |
| Warranty card & Manual | 1 Pcs | |
| Angle with accessories | 1 Set | |
| Battery (AAA) | 2 pcs |
